SPECIFICATIONS

2.4G Wi-Fi Transmission Rate: 300 Mbps

5G Wi-Fi Transmission Rate: 867Mbps

Antenna Type: Fixed

Application: Home

Brand Name: kebidumei

Frequency: 5 GHz

Frequency Band Class: Dual-Band

High-concerned chemical: None

Number of USB Interfaces: None

Origin: Mainland China

Package: Yes

Recommended Uses: Home

Standards And Protocols: Wi-Fi 802.11g

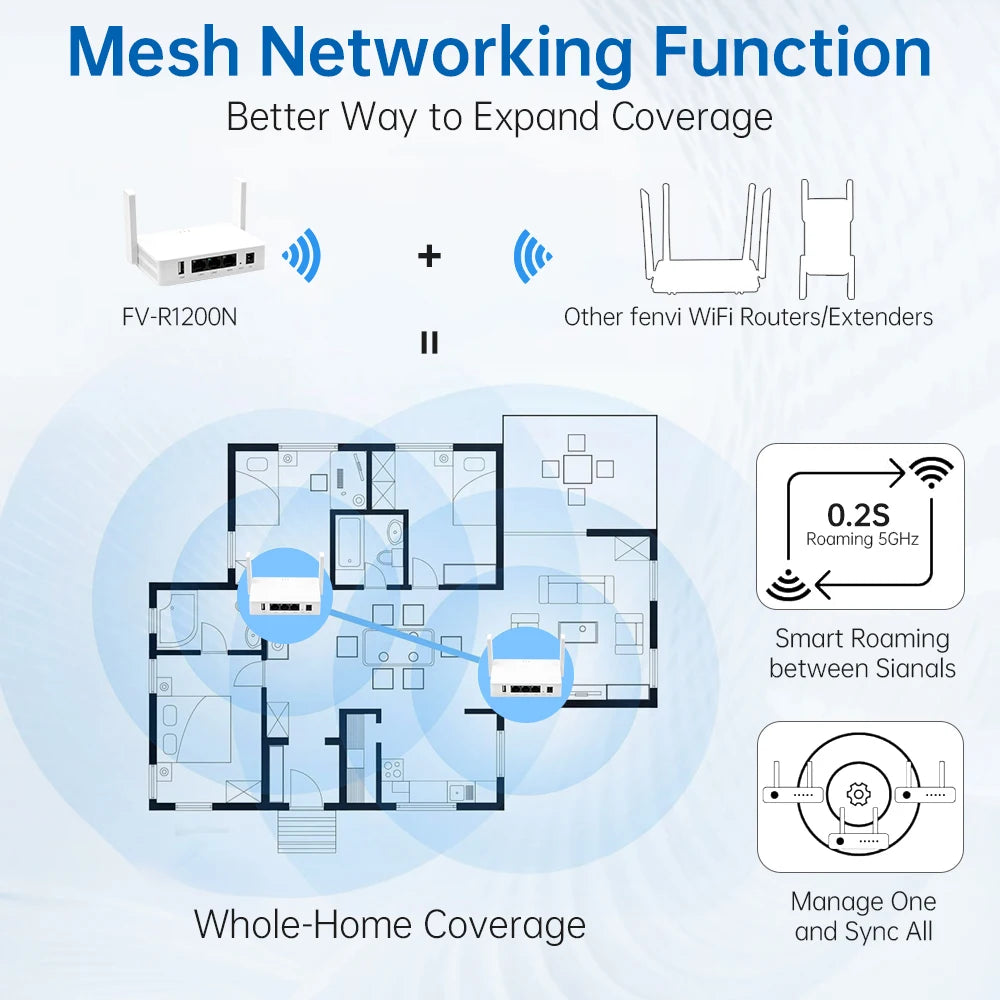

Support Mesh: Support

Supports WDS: No

Supports WPS: Yes

Type: WireLess

Wi-Fi Supported Frequency: 2.4G & 5G

Wi-Fi Transmission Standard: 802.11ac

Wireless Communication Standard: 802.11.ac

Wireless transmission rate: 1200M

With Modem Function: No

Processor/Memory
CPU        MT7628AN+MT7613E
RAM        128MB DDR2
ROM        16MB

WLAN Specifications
Standard：IEEE 802.11 b/g/n/a/ac
Frequency range：2.4 GHz & 5.8GHz
Maximum speed :2×2 MU-MIMO (2.4 GHz), 2×2 MU-MIMO (5 GHz)
Encryption method :2.4 GHz ：17±2dBm    5.8 GHz：16±2dBm
Maximum power Spatial :WPAPSK, WPA2PSK, WPA-PSK/WPA2-PSK

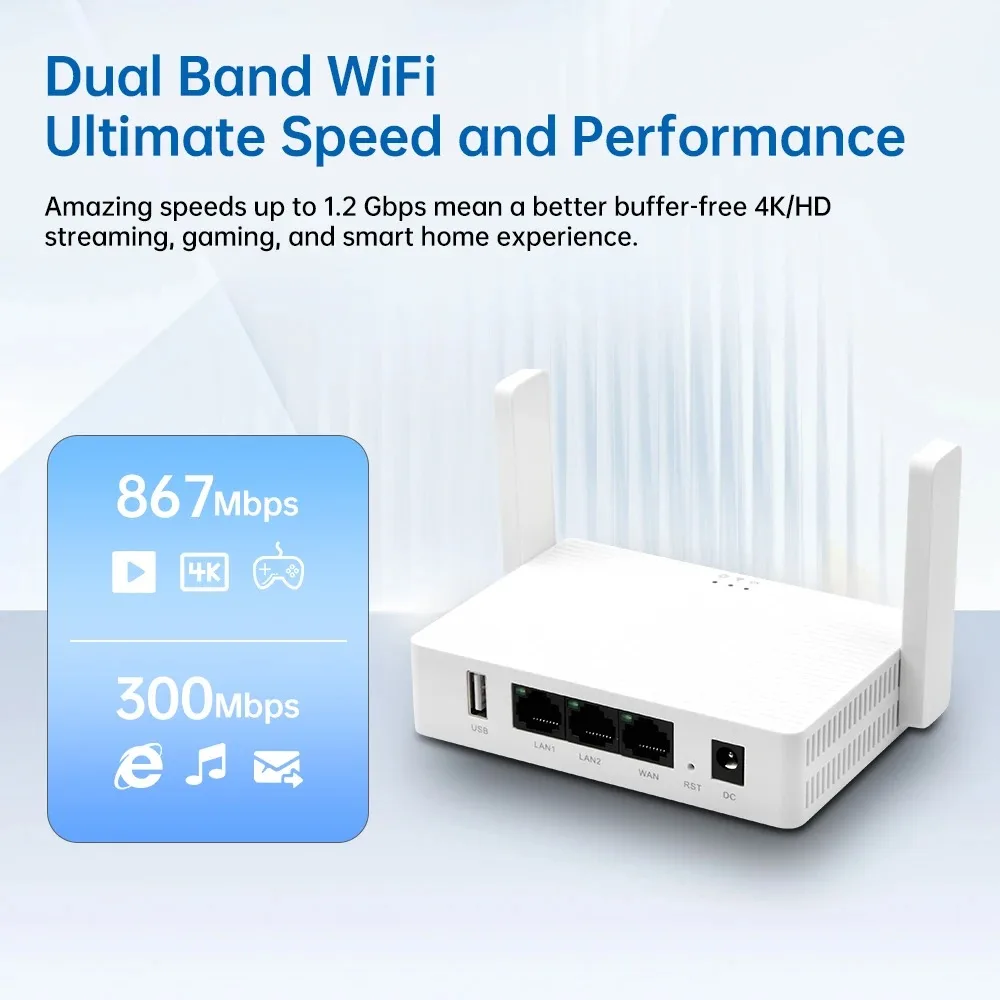

2.4 GHz: up to 300 Mbps, 5 GHz: up to 866.7 Mbps

Antenna Sensitivity
 2.4GHz：
11n(MCS0 HT40): -85dBm±2dBm @10% PER
11g(6M): -87dBm±2dBm @10% PER
11b(1M): -91dBm±2dBm @8% PER
5.8GHz：
11ac(MCS0): -73dBm±2dBm @10% PER
11n(MCS0 HT40): -83dBm±2dBm @10% PER
11a(6M): -86dBm±2dBm @8% PER
WiFi antenna：Internal 5dBi Dual-band Antennas x2

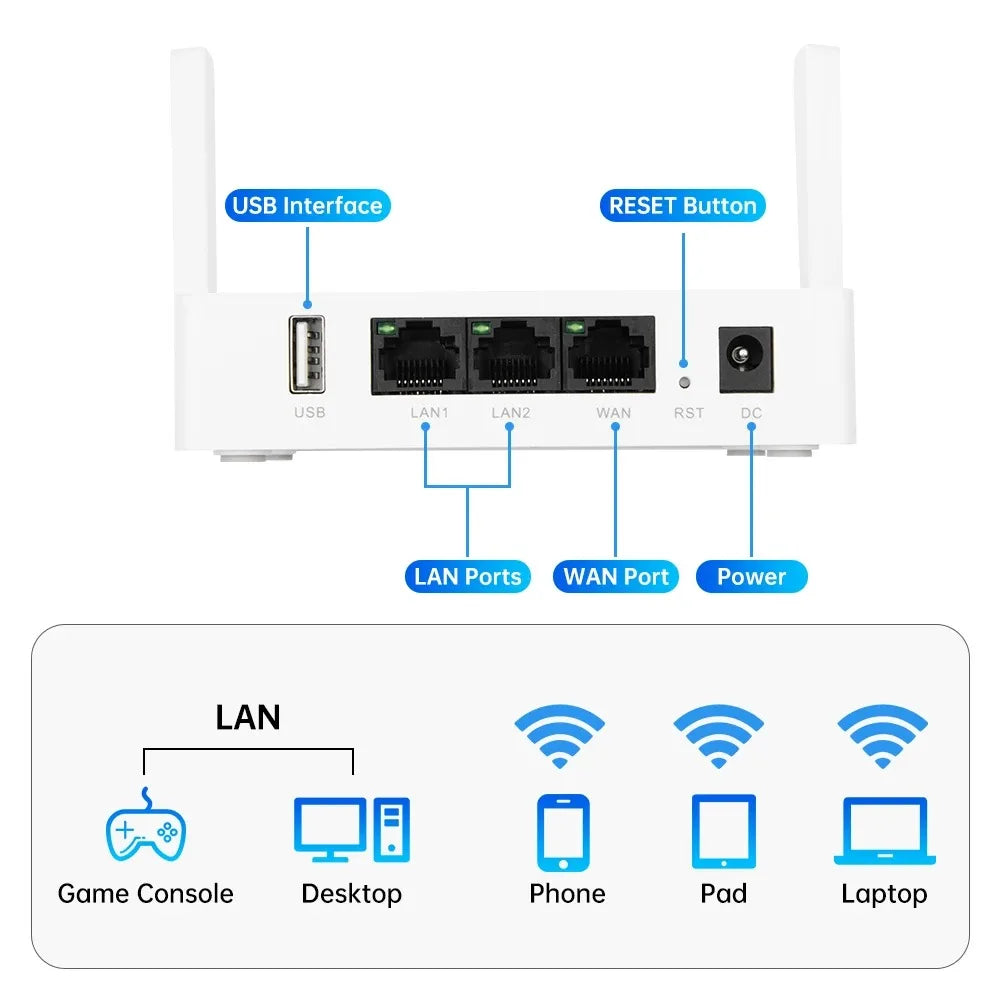

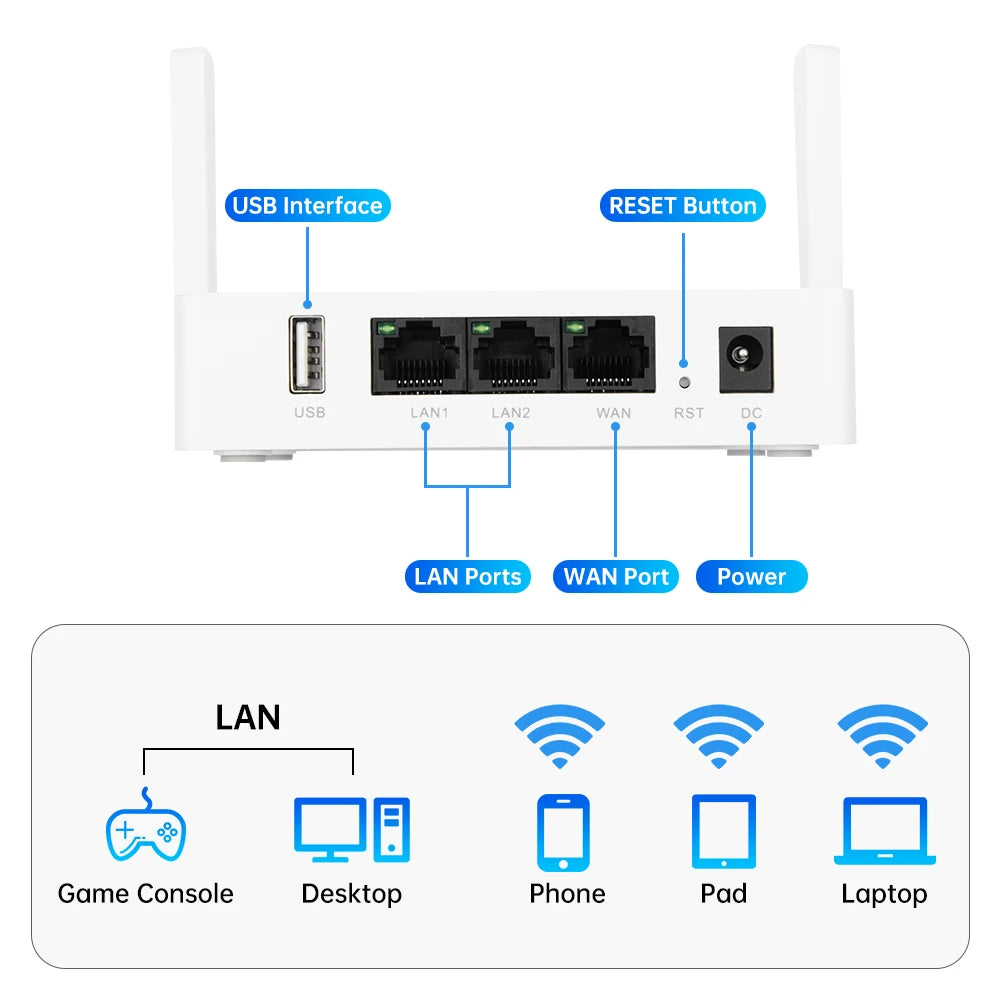

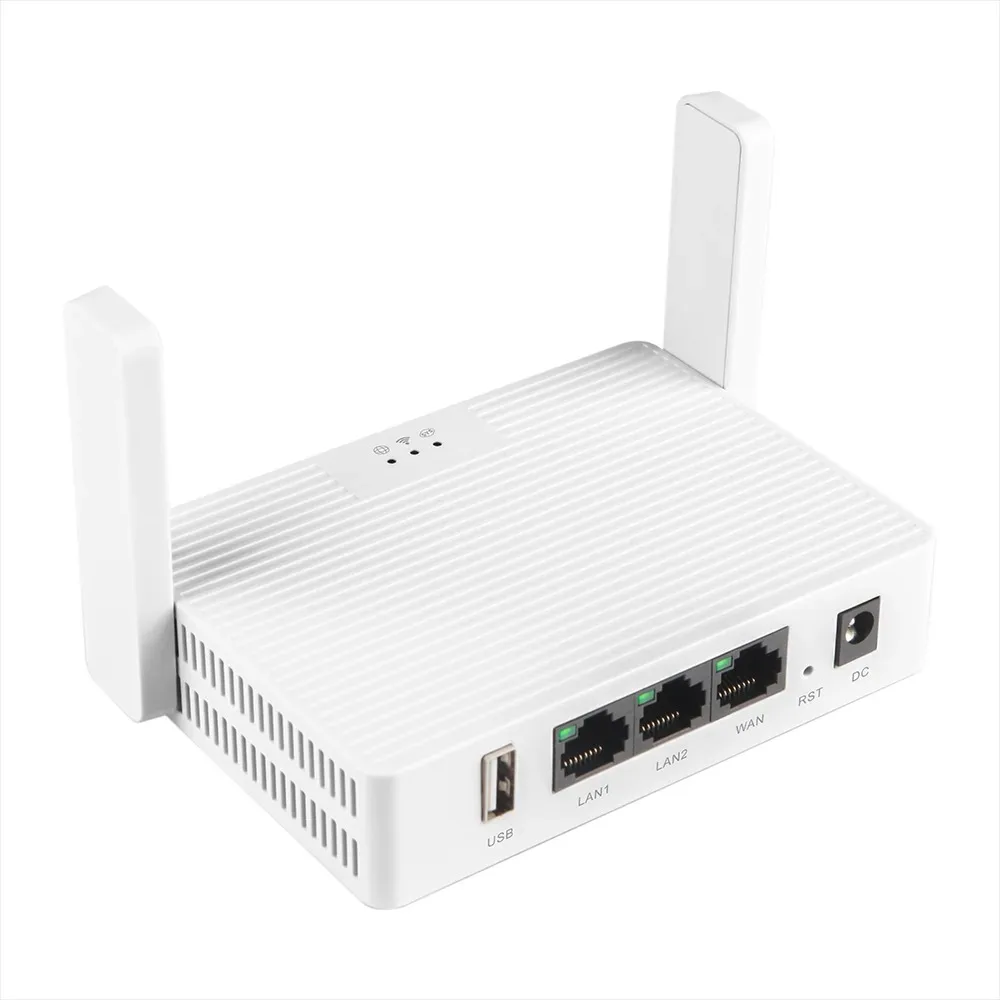

Network port :1 x 10/100M WAN/LAN, 2 x 10/100M LAN
LED :1 x Wifi, 1 x SYS, 1 x internet
Other :Reset Button x 1    USB port x 1
Dimensions:133 x 85 x 28 mm
Equipment power supply:12V/1A DC
Power supply:100 – 240V AC, 50/60Hz
Maximum power consumption:10 W
Temperature:  -30°C ~ +65°C
Humidity: 0 ~ 90% (non-condensing)

Package Includes
Router        1 PCS
power adapter  1 PCS（12V 1A DC）
User Manual    1 PCS
